2010 Mazda Tribute Trailer Hitch Receiver Curt 12060 3,500 Lbs Fits 1-1/4" inch

• Ford, Escape, 2005 - 2012
• Mercury, Mariner, 2005 - 2011
• Mazda, Tribute, 2005 - 2011

Instructions: Installation Details.pdf

Installation Notes:

• Hitch cross tube is concealed.
• No drilling required.
• Minor trimming heat shield.
• Exhaust must be removed temporarily.
• Installation time: 30 min

Features

Custom fit is designed specifically for your vehicle
Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories
Tested for safety in accordance with SAE J684
Protected by a durable high-gloss black powder coat finish
Bolt-on installation - no welding required
Complete hardware kit and installation instructions included
Trailer hitch weight ratings are limited to vehicle manufacturers stated capacities and conditions
Backed by a limited lifetime warranty
Hitch Pin Included
Drawbar and Hitch lock pin sold separately
Made in the USA
Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.)
All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt.

Specs

Receiver opening: 1-1/4"
Hitch design: Square tube
Rating: Class 2
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 3,500lbs
Maximum tongue weight: 350lbs
Maximum weight distribution weight: N/A
Maximum weight distribution tongue weight: N/A
Limited lifetime warranty

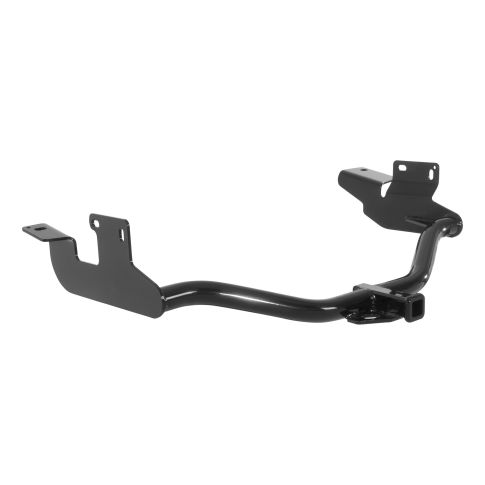

This CURT class 2 trailer hitch is made for light-duty towing, having a gross trailer weight capacity up to 3,500 lbs. and a tongue weight capacity of 350 lbs. This makes it an excellent choice for most smaller size trailers such as single-axle utility trailers, small boat trailers, popup campers and some recreational vehicle trailers. It is also perfect for adding cargo space with a hitch-mounted cargo carrier or bike rack (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). CURT class 2 trailer hitches are generally used on full-size cars, crossover SUVs, compact SUVs, minivans and even some smaller pickup trucks. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Ford Escape (including hybrid), Mercury Mariner or Mazda Tribute (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a round tube frame and comes with a hitch pin and clip and all hardware necessary for a complete installation. It also features a 1 1/4" x 1 1/4" receiver tube opening to accept a ball mount.

CURT class 2 hitches are made with innovative engineering that takes shape in quality materials. Our engineers work with real vehicles and advanced programs to design each hitch to succeed. CURT trailer hitches are constructed with American steel by state-of-the-art machinery and our skilled fabricators, welders and technicians. We coat each hitch in a liquid Bonderite coating that provides long-lasting corrosion, chip and UV resistance, and then finish them in a high-gloss black powder coat. Our quality processes and construction give us the confidence to include a limited lifetime warranty and a one-year finish warranty on all of our class 2 hitches. Best of all, we are proud to say that every CURT hitch is manufactured in the USA.
