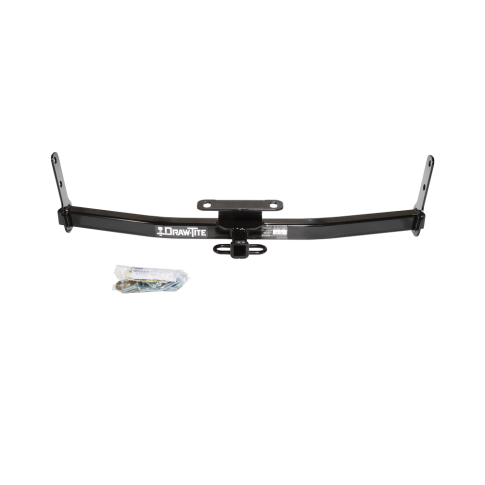

2016 GMC Terrain Trailer Hitch Receiver Draw-Tite 36408 3,500 Lbs Fits 1-1/4" inch

• Chevrolet, Equinox, 2005 - 2017
• GMC, Terrain, 2010 - 2017
• Pontiac, Torrent, 2006 - 2009
• Saturn, Vue excluding Red Line, 2002 - 2007

Instructions: Installation Details.pdf

Installation Notes:

• Hitch cross tube is visible.
• No drilling required.
• Installation time: 30 min

Features

Custom fit is designed specifically for your vehicle
Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories
Tested for safety in accordance with SAE J684
Protected by a durable high-gloss black powder coat finish
Bolt-on installation - no welding required
Complete hardware kit and installation instructions included
Trailer hitch weight ratings are limited to vehicle manufacturer’s stated capacities and conditions
Backed by a limited lifetime warranty
Drawbar and pin and clip sold separately
Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.)

Specs

Receiver opening: 1-1/4""
Hitch design: Square tube
Rating: Class 2
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 3,500lbs
Maximum tongue weight: 300lbs
Maximum weight distribution weight: N/A
Maximum weight distribution tongue weight: N/A
Limited lifetime warranty

Draw tite Class 2 hitch is strong enough to handle a variety of small trailers such as single axle utility trailers, canoe and kayak trailers, dirt bike trailers and more. It can also accept a hitch mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space. Class 2 hitches feature a 1.25" x 1.25" receiver tube opening and are generally used on full-size cars, crossover SUVs, compact SUVs, minivans and even some smaller pickup trucks. All Draw Tite Hitches are backed by a nationwide limited lifetime warranty.
