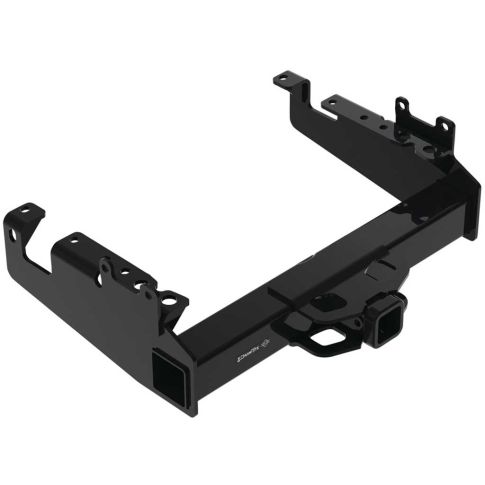

2019 - 2026 Ford F-450 Cab and Chassis Trailer Hitch Receiver Draw Tite 45520 20,000lbs, 2-1/2"

• Ford, F-450 Cab and Chassis w/34" frames, 2019 - 2026

Instructions: Installation Details.pdf

Installation Notes:

• Hitch cross tube is not concealed.
• No drilling required.
• Installation time: 40 min

Features

Custom fit is designed specifically for your vehicle
Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories
Tested for safety in accordance with SAE J684
Protected by a durable high-gloss black powder coat finish
Bolt-on installation - no welding required
Complete hardware kit and installation instructions included
Trailer hitch weight ratings are limited to vehicle manufacturers stated capacities and conditions
Backed by a limited lifetime warranty
Hitch Pin Included
Drawbar and Hitch lock pin sold separately
Made in the USA
Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.)
All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Draw Tite.

Specs

Receiver opening: 1-1/4"
Hitch design: Square tube
Rating: Class 2
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 20,000lbs
Maximum tongue weight: 3,000lbs
Maximum weight distribution weight: 20,000lbs
Maximum weight distribution tongue weight: 2,000lbs
Limited lifetime warranty

DRAW-TITE® Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 20,000 lbs. gross trailer weight (GTW) and up to 3,000 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 20,000 lbs. weight distribution (WD) and 2,000 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2-1/2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North America’s Favorite Hitch.
