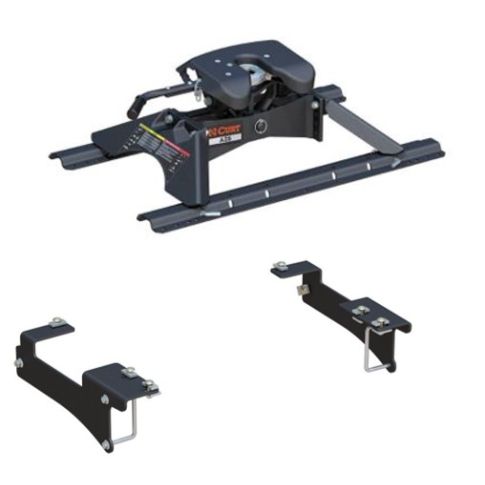

2020-2026 Chevy/GMC Silverado Sierra 2500HD 3500HD 5th Wheel Hitch 30K Trailer Hitch for Standard Long Bed, Curt, A30, 16190-590-907-205-429

• Chevrolet, Silverado 2500, 2020 - 2025
• Chevrolet, Silverado 3500, 2020 - 2025
• GMC, Sierra 2500, 2020 - 2025
• GMC, Sierra 3500, 2020 - 2025

Instructions: Installation Details.pdf

Features

5th-Wheel hitch mounts in your truck bed so you can tow your 5th-wheel trailer
Can be used with short bed truck, but short bed truck require a slider for clearance
Interlocking 2-jaw system provides 360-degree jaw-to-king-pin contact
Less rattle and more security than slide-bar models
3-Point indicator system - color coding tells you if hitch is ready to uncouple, couple, or tow
Lock indicators visible from cab
Fully articulating torsion head for controlled coupling and a stable, quiet ride
Self-aligns for easy hookup
Suppresses road shock
Reduces bothersome towing noise
Lockable handle lets you easily secure trailer to hitch with padlock (sold separately)
Single-throw operation
Self-resets to the ready-to-couple position after you uncouple your trailer
2 Built-in zerk fittings for easy lubrication
Fast 1-pin head removal makes it easy for 1 person to remove hitch
Included plastic lube plate lets king pin glide smoothly into hitch during hookup
4" Height adjustment
Simple installation with base rails and installation kit Included
Compatible with B&W, Curt, Demco, Draw-Tite, Hidden Hitch, Husky, Reese, and Valley above-bed base rails
Sturdy steel construction with durable, carbide powder coat finish
Made in USA

Specs

Gross towing weight: 30,000lbs
Vertical load limit: 6,250lbs
Jaw: Dual, Interlocking
Height adjustment: 13" to 17"
Weight: 134lbs
Limited lifetime warranty

This Fits Chevrolet 2500HD , Chevrolet 3500HD and GMC 2500HD and 3500 HD. The CURT A30 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of A-series, an easier mounting system and the power of a 30K 5th wheel hitch. Like A16 and A20 hitches, this 30K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A25 5th wheel hitch is also engineered for easier installation. The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening. The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs

This 30K 5th wheel mounts to any industry-standard 5th wheel rails, using the 5th wheel legs or a CURT 5th wheel roller. It can also be mounted into the puck system of a truck equipped with the towing prep package, using OEM puck system legs or roller adapters. Once installed, the A30 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A25 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish and a limited lifetime warranty. also test the A30 for safety in accordance with SAE J2638 standards to ensure reliability for the road ahead. Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs

When you purchase a 5th wheel trailer hitch, you expect it to be capable of towing your RV, flatbed or whatever other 5th wheel trailer you own. While a 5th wheel hitch does offer an impressive amount of towing strength, it cannot get far without the proper installation equipment. Engineered for specific makes and models, CURT custom 5th wheel brackets provide the ideal solution for complementing the power of your 5th wheel trailer hitch. A custom 5th wheel bracket features a shape that contours to the frame of your truck and uses pre-drilled holes in the frame wherever possible to make installation quick and easy. In fact, custom brackets are so much easier to install that they can cut installation time in half. Depending on your model of pickup truck, they also reduce or eliminate the need for drilling.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs

These particular custom 5th wheel brackets offer a custom fit for certain Ford Super Duty trucks. To find which bracket kit is specially designed to fit on your pickup, see the CURT 5th wheel bracket application guide or visit curtmfg.com. Finished in a durable liquid Bonderite® coating, CURT custom 5th wheel brackets are made to last. They include all necessary mounting hardware and are designed to be used in conjunction with CURT industry-standard 5th wheel base rails #16204.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs
