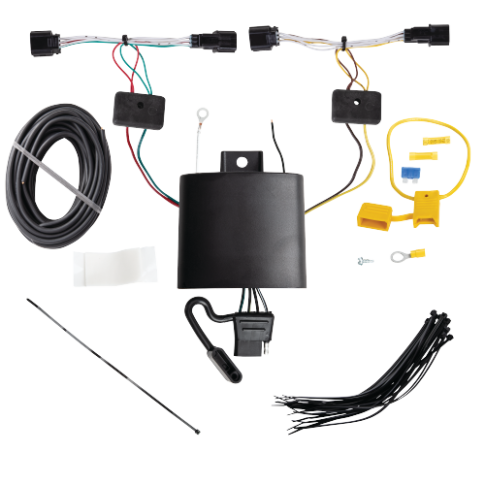

2023 Kia Sorento T-Connect Protector Wiring Harness w/ Integrated Circuit & Overload Protection, Kit included/Tekonsha/118838

• Kia, Sorento, 2021 - 2023,

Instructions: Installation Details.pdf

Installation Notes:

Features

The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
Draws power directly from the vehicle battery
Will work with either LED/Incandescent bulbs (vehicle & trailer)
Short circuit protection safeguards itself and the tow vehicle against harmful electrical shorts
Designed not to send feedback thru the vehicle circuits
The trailer brakes will override the hazard lamps when the brake is activated
The taillight circuit works with vehicles that use a pulse width modulation (PWM)
Circuit automatically resets once the module cools
Will work with most vehicles that have a multiplex system for lighting
Will not work with vehicles with low-side switch
Can be used on a 2 wire or 3 wire system
All solid-state components in potted encapsulation
Includes integrated protective cover

Specs

Turn and Brake Circuits: 5.0 Amps
Tail Light Circuits: 7.5 Amps
Output: 4-Way Flat
Converter Type: Circuit Protected Power

This Tenkonsha custom wiring connector is a simple, plug and play electrical device that eliminates the need for cutting, splicing and soldering when installing vehicle to trailer wiring. Most vehicles do not come ready to tow.Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector. Though this option is not available on every vehicle, some automotive manufacturers design their vehicles to be easily equipped for towing by supplying a socket, integrated into the vehicle's electrical system, to readily accept a custom wiring connector. They come with dust covers to keep your connector clean when not in use and feature a one year limited warranty to give you peace of mind. Tekonsha have adapters to let you plug almost any trailer into any truck that's wired for a trailer.
