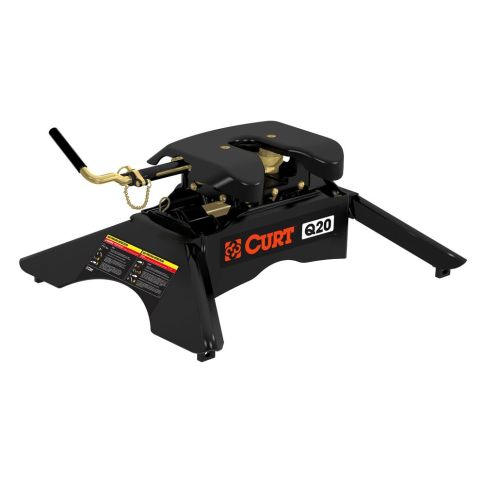

Curt 16130 Q20 5th Wheel Trailer Hitch-Dual Jaw- 20,000lbs

• Requires Base Rails and 5th Wheel Side Brackets
• 20K Towing Capacity
• Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
• Fully articulating torsion head for controlled coupling and stable towing
• Lockable handle self-resets to the ready-to-couple position after uncoupling
• High-strength, interlocking jaws fully wrap the kingpin to minimize noise
• Extra wide head opening for easier coupling
• Fast, one-pin head removal makes moving easy with smaller, lighter pieces

Instructions: Installation Details.pdf

Features

Spherical axial bearing tilts head in any direction for a smooth, quiet ride
Dual jaws fully wrap the kingpin to reduce chucking and increase security
Wide, self-aligning head helps eliminate errors when backing up to the trailer
Lockable, short-throw handle automatically engages with the kingpin
Three easy-access grease fittings for lubrication
Three-position coupling indicator clearly shows coupling status
Mounts to all industry-standard base rails
Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)
Includes 5th wheel head, legs and hardware
Capacity limited to lowest-rated towing component
Not compatible with turret-style pin boxes, such as Sidewinde

Specs

Gross towing weight: 20,000lbs
Vertical load limit: 5,000lbs
Jaw: Dual, Interlocking
Height adjustment: 13"- 17"
Weight: 140lbs
Limited lifetime warranty

Like the other 5th wheel hitches of the CURT Q-Series, the CURT Q20 is a specialist in its class. It features a gross trailer weight capacity of 20,000 lbs. and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large recreational vehicles, campers and many other 5th wheel trailers. Also like the Q24, the Q20 5th wheel has a superior hitch head, pivoting on a spherical axial bearing. This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer. The self-aligning head and dual-locking jaws make coupling easier, and with the three-position coupling mechanism, indicating when it safe to couple and when it is safe to tow, you can be out of the driveway and on your way quicker than ever.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs

The Q20 comes with a durable carbide powder coat finish to give this hitch the best possible defense against corrosion, scratching, UV damage and whatever else you throw its way. It meets proposed SAE J2638 testing standards and is also backed by a 10-year limited warranty to give you peace of mind. This 20K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets. Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs
