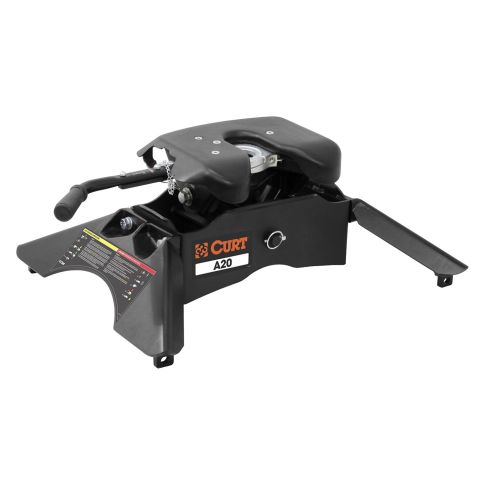

Curt 16140 A20 5th Wheel Trailer Hitch-Dual Interlocking Jaw- 20,000 Lbs

• Requires Base Rails and 5th Wheel Side Brackets
• 20K Towing Capacity
• Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
• Fully articulating torsion head for controlled coupling and stable towing
• Lockable handle self-resets to the ready-to-couple position after uncoupling
• High-strength, interlocking jaws fully wrap the kingpin to minimize noise
• Extra wide head opening for easier coupling
• Fast, one-pin head removal makes moving easy with smaller, lighter pieces

16140 Instructions: Installation Details.pdf

Features

Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
Fully articulating torsion head for controlled coupling and stable towing
Lockable handle self-resets to the ready-to-couple position after uncoupling
High-strength, interlocking jaws fully wrap the kingpin to minimize noise
Extra wide head opening for easier coupling
Fast, one-pin head removal makes moving easy with smaller, lighter pieces
Alignment pegs and easy-access bolts for simple leg-to-body attachment
Three-position coupling indicator clearly shows coupling status
Compatible with kingpin extension boxes, including common pivoting pin boxes
Mounts to all industry-standard base rails
Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)
Includes 5th wheel head, legs and hardware
Patent# 8,827,298
Capacity limited to lowest-rated towing component

Specs

Gross towing weight: 20,000lbs
Vertical load limit: 5,000lbs
Jaw: Dual, Interlocking
Height adjustment: 19"- 23"
Weight: 134lbs
Limited lifetime warranty

The CURT A20 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of A-series, an easier mounting system and the power of a 20K 5th wheel hitch. Like A16 hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A20 5th wheel hitch is also engineered for easier installation. The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening. The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs

This 20K 5th wheel mounts to any industry-standard 5th wheel rails, using the 5th wheel legs or a CURT 5th wheel roller. It can also be mounted into the puck system of a truck equipped with the towing prep package, using OEM-compatible legs or roller adapters. Once installed, the A20 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A20 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish and a limited lifetime warranty. also test the A20 for safety in accordance with SAE J2638 standards to ensure reliability for the road ahead.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs
