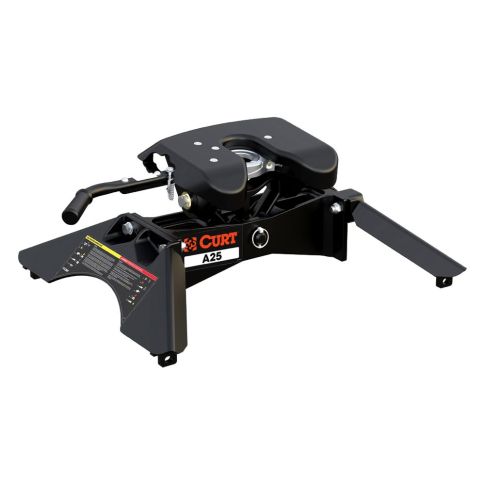

Curt 16180 A25 5th Wheel Trailer Hitch-Dual Interlocking Jaw- 25,000 Lbs

• Requires Base Rails and 5th Wheel Side Brackets
• 25K Towing Capacity
• Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
• Fully articulating torsion head for controlled coupling and stable towing
• Lockable handle self-resets to the ready-to-couple position after uncoupling
• High-strength, interlocking jaws fully wrap the kingpin to minimize noise
• Extra wide head opening for easier coupling
• Fast, one-pin head removal makes moving easy with smaller, lighter pieces

Instructions: Installation Details.pdf

Features

5th-Wheel hitch mounts in your truck bed so you can tow your 5th-wheel trailer
Can be used with short bed truck, but short bed truck require a slider for clearance
Interlocking 2-jaw system provides 360-degree jaw-to-king-pin contact
Less rattle and more security than slide-bar models
3-Point indicator system - color coding tells you if hitch is ready to uncouple, couple, or tow
Lock indicators visible from cab
Fully articulating torsion head for controlled coupling and a stable, quiet ride
Self-aligns for easy hookup
Suppresses road shock
Reduces bothersome towing noise
Lockable handle lets you easily secure trailer to hitch with padlock (sold separately)
Single-throw operation
Self-resets to the ready-to-couple position after you uncouple your trailer
2 Built-in zerk fittings for easy lubrication
Fast 1-pin head removal makes it easy for 1 person to remove hitch
Included plastic lube plate lets king pin glide smoothly into hitch during hookup
4" Height adjustment
Simple installation with base rails and installation kit (sold separately)
Compatible with B&W, Curt, Demco, Draw-Tite, Hidden Hitch, Husky, Reese, and Valley above-bed base rails
Sturdy steel construction with durable, carbide powder coat finish
Made in USA

Specs

Gross towing weight: 25,000lbs
Vertical load limit: 6,250lbs
Jaw: Dual, Interlocking
Height adjustment: 13" to 17"
Weight: 134lbs
Limited lifetime warranty

The CURT A25 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of A-series, an easier mounting system and the power of a 25K 5th wheel hitch. Like A16 and A20 hitches, this 25K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A25 5th wheel hitch is also engineered for easier installation. The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening. The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs

This 25K 5th wheel mounts to any industry-standard 5th wheel rails, using the 5th wheel legs or a CURT 5th wheel roller. It can also be mounted into the puck system of a truck equipped with the towing prep package, using OEM puck system legs or roller adapters. Once installed, the A25 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A25 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish and a limited lifetime warranty. also test the A25 for safety in accordance with SAE J2638 standards to ensure reliability for the road ahead. Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs
