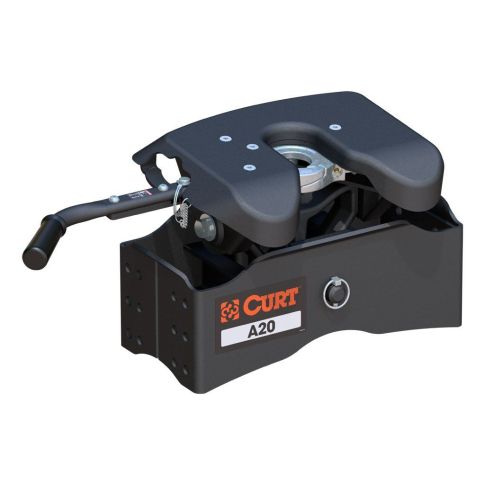

Curt 16540 A20 5th Wheel Head, 20,000 Lbs

• Chevrolet, Silverado 1500, 1999 - 2021
• Chevrolet, Silverado 2500HD, 2007 - 2021
• Chevrolet, Silverado 3500HD, 2007 - 2021
• GMC, Sierra 1500, 1999 - 2021
• GMC, Sierra 2500HD, 2007 - 2021
• GMC, Sierra 3500HD, 2007 - 2021
• Nissan, Titan, 2004 - 2021
• Toyota, Tundra, 2007 - 2021
• Ford, F-150, 2004 - 2021
• Ford, F-250 Super Duty, 2005 - 2021
• Ford, F-350 Super Duty, 2005 - 2021
• RAM, 1500, 2013 - 2021
• RAM, 2500, 2013 - 2021
• RAM, 3500, 2013 - 2021
• Dodge, Ram 1500, 2002 - 2010
• Dodge, Ram 2500, 2002 - 2010
• Dodge, Ram 3500, 2003 - 2010

Instructions: Installation Details.pdf

Features

Requires CURT 5th wheel roller or legs for installation
Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
Fully articulating torsion head for controlled coupling and stable towing
Lockable handle self-resets to the ready-to-couple position after uncoupling
High-strength, interlocking jaws fully wrap the kingpin to minimize noise
Extra wide head opening for easier coupling
Fast, one-pin head removal makes moving easy with smaller, lighter pieces
Alignment pegs and easy-access bolts for simple leg-to-body attachment
Three-position coupling indicator clearly shows coupling status
Compatible with kingpin extension boxes, including common pivoting pin boxes
Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)
Includes 5th wheel head only
Patent# 8,827,298
Capacity limited to lowest-rated towing component

Specs

Gross towing weight: 20,000lbs
Vertical load limit: 5,000lbs
Height adjustment: 13"- 17"
Weight: 102lbs
Limited lifetime warranty

The CURT A20™ 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series™, an easier mounting system and the power of a 20K 5th wheel hitch. Like our A16™ hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. To protect the A20™ 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a carbide black powder coat finish and a limited lifetime warranty. We also test the A20™ for safety in accordance with SAE J2638 to ensure reliability for the road ahead. NOTE: This A20™ head unit is designed to be a replacement head only. It requires 5th wheel legs or a 5th wheel roller to be installed. These components are not included in this package.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs
