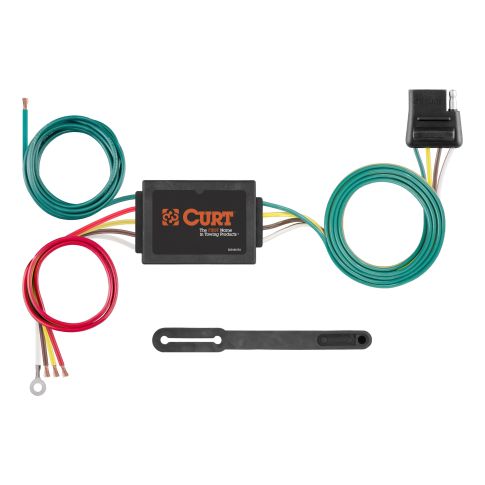

Curt 56175 Trailer Wiring Converter

Instructions: Installation Details.pdf

Features

Converts 2-wire,Converts 3-wire vehicle electrical system to a standard 4- Way Flat trailer wiring
4-way flat output connects tail lights, brake lights and turn signals
Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
Hardwires to existing harness behind tail lights
16 Gauge bonded wire with 4-flat plug
Constructed with SMT circuitry for better performance and durability
Color-coded wires for easier installation
Snap locks included for fast, secure splicing
No heavy-duty flasher or direct battery connection required
Not recommended for vehicles with LED lights
Dust cover included to keep connector clean when not in use
Made in USA

Specs

Input: See Vehicle Guide
Output: 4-Way Flat Vehicle End
Stop/Turn Maximum Amps: 3.0 Amps
Tail Lights Maximum Amps: 5.0 Amps
Weight: 0.590lbs
Warranty: Limited 1 Year

When your vehicle does not readily provide an electrical connection for hooking up your trailer, CURT electrical converts offer the solution. Working tail lights on your trailer are absolutely essential any time you tow, and a converter provides an effective way to properly equip your vehicle for safe towing. A CURT electrical converter, much like our custom vehicle-to-trailer wiring harnesses, provides a trailer connector on your vehicle by slicing into the vehicle's electrical system. Electrical converters are designed to splice directly into the taillight wiring, rather than plugging into various sockets, giving them the nickname "taillight converters". Though it requires a little extra work compared to a custom wiring harness, a tail light converter offers a reliable, long-term connector solution.

This CURT electrical converter is designed to convert a 3-wire system to a 2-wire system and provides a standard 4-way flat connector socket to plug in your trailer. It is designed to fit certain models of Acura, Audi, Buick, Chevrolet, Chrysler, Dodge, Eagle, Ford, Geo, Honda, Hyundai, Infiniti, Isuzu, Kia, Mazda, Mercedes, Mercury, Mitsubishi, Nissan, Oldsmobile, Peugeot, Plymouth, Pontiac, Saturn, Suzuki, Toyota, Volkswagen and Volvo (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). This converter is made with cutting-edge surface-mount technology (SMT) circuitry, featuring electrical components that are mounted directly to the surface of the board rather than being inserted into a series of holes. SMT circuits have longer life cycles, lower resistance, reduced heat generation and are more reliable than through-hole-mounted components. Plus, to give you peace of mind for the long haul, the majority of CURT converters are proudly made right here in the USA.
