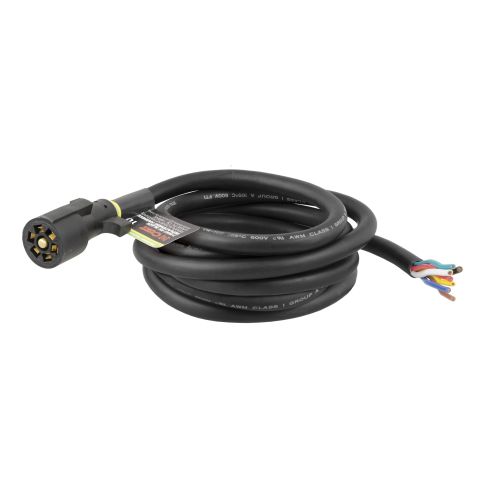

Curt 56603 7-Way RV Trailer Wiring Replacement Harness, 10" Ft Long

Features

7-Way trailer-end connector lets you replace a damaged wiring harness on your trailer
Pre-wired to ease installation
Molded-on, insulated cable protects the wiring from water and debris, ensuring durability
Color-coded wires for easier splicing

Specs

Length: 10ft
Input: Trailer End
Output: 7-Way Rv Blade
Wire gauge:
14 Gauge - brown, red, Blue, green, and yellow
10 Gauge - black, and white
Weight: 3.10lbs
Warranty: Limited 1 Year

Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailer's electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road. CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer. This 7-way RV blade replacement harness is designed to replace an existing 7-way plug on your trailer and supply power for tail lights, turn signals, electric trailer brakes, a 12-volt battery, reverse lights and brake lights, as well as a ground connection. It features color-coded wires for easy splicing into your trailer's wiring system. With a 10' cable and protective plastic sleeve, this harness is perfect for RV travel trailers, providing more than enough length to accommodate virtually any vehicle-trailer combination and maintaining a solid electrical connection in spite of the elements. This 7-way RV blade connector is a male-end plug, specifically designed for the trailer side of the connection.
