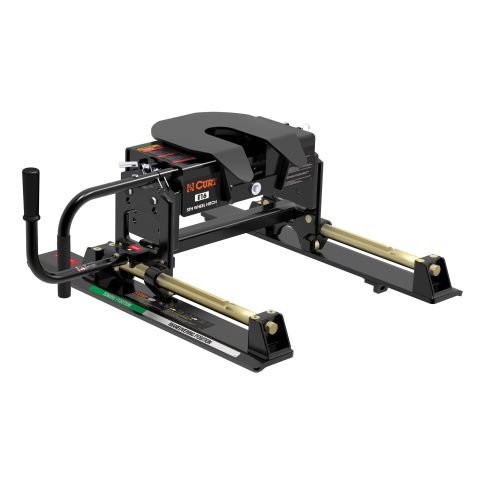

Curt E16 5th Wheel Trailer Hitch w/R16 Slider-Locking Bar Jaw- 16,000lbs

• Requires Base Rails and 5th Wheel Side Brackets
• 16K Capcity
• R16 5th wheel slider #16560 provides 12" of travel in the truck bed
• Pivots on dual axes for 10 degrees of lateral movement
• Automatically locks for easy, secure coupling
• Operates using a single handle
• Features an anti-rattle skid plate to help reduce noise
• Compatible with kingpin extension boxes, including common pivoting pin boxes

16516 Instructions: Installation Details.pdf

16560 Instructions: Installation Details.pdf

16515 Instructions: Installation Details.pdf

Features

Pivots on dual axes for 10 degrees of lateral movement
Automatically locks for easy, secure coupling
Operates using a single handle
Features an anti-rattle skid plate to help reduce noise
R16 5th wheel slider #16560 provides 12" of travel in the truck bed
Rolls on wheels and solid, non-binding rods to be a true rolling unit
Mounts to all industry-standard base rails
Offers four height adjustment positions to adapt to each unique truck bed
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)
Includes E16 5th wheel #16515, R16 slider #16560, 5th wheel adapter #16505 and hardware
Capacity limited to lowest-rated towing component
Made in USA

Specs

Gross towing weight: 16,000lbs
Vertical load limit: 4,000lbs
Jaw: Dual, Interlocking
Height adjustment: 14"- 17"
Weight: 157lbs
Limited lifetime warranty

The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch head comes attached to the CURT R16 roller.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs

Our 5th wheel rollers mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel rollers feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel rollers are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs
