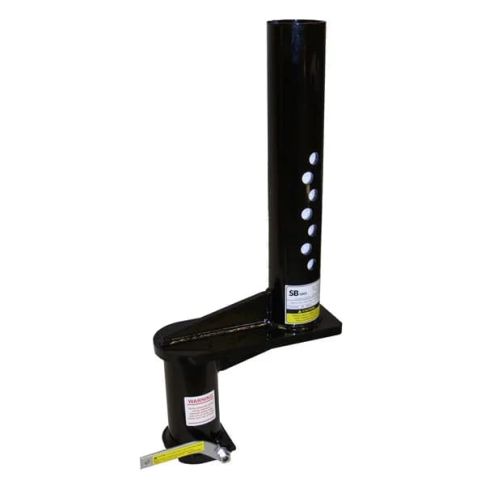

PopUp SB1XL Gooseneck 4" Round Coupler, 9" Offset for FlatBeds Recessed Balls, 2-5/16" Ball 24,000lbs
Free Shipping on any PopUp Hitch Orders Over $100.
*Only Available within the Lower 48 US States.
For flat bed trucks with recessed ball
Fits trailers with 4″ ID round tube
Our Part measures 4″ outside to outside and is manufactured with USA steel. Make sure it fits your trailer downtube. Some manufacturers use Import tubes, and many are Not sized consistently or are out of round or square. PopUp assumes No responsibility for returns when incorrect measurements are taken. Please see return policy.
Write your review
About the PopUp SB1XL Gooseneck 4" Round Coupler, 9" Offset for FlatBeds Recessed Balls, 2-5/16" Ball 24,000lbsMore Information
| SKU | PUPSB1XL |
|---|---|
| Availability | Shipping Required |
| Tow Capacity | 24,000 Lbs |
| Tongue Capacity BM | 5,000 Lbs |
| Brand | PopUp Hitch |
| Material | Carbon Steel |
| Finish | Black Powder Coat Over E-Coat |
| Short Description | For flat bed trucks with recessed ball Fits trailers with 4″ ID round tube Our Part measures 4″ outside to outside and is manufactured with USA steel. Make sure it fits your trailer downtube. Some manufacturers use Import tubes, and many are Not sized consistently or are out of round or square. PopUp assumes No responsibility for returns when incorrect measurements are taken. Please see return policy. |
| Installation | Instructions: Installation Details.pdf |
| Specifications | Specifications: Up to 24,000 lbs. Gross Trailer Weight. Extra 4″ of height for use with recessed ball Nine Inch offset between truck and trailer. Self-latching GN8 2-5/16″ coupler 24,000 lbs. Gross Trailer Weight. Includes coupler release cable and hardware. Fits trailers with 4″ ID round tube Fits standard trailer coupler tubes. 7/8″ holes thru both sides Extra heavy wall tube for maximum strength. Made in America |
| Overview | The SB1XL 9″ offset gooseneck coupler is designed for flatbed truck owners with a recessed ball. The SB1XL has an extra 4″ inches of height to allow proper clearance to keep the back of the offset up away from the bed floor. This is a popular option for farmers/ranchers with those 9′ beds to keep the trailer back away from the corners of the bumpers when turning. This coupler latches when the trailer is lowered onto the ball. It also has a molded hitching guide to make coupling easier. To uncouple, you simply pull a release cable located near the trailer jack handle. The GN8 coupler has a rating of 28,000 pounds. These units are fabricated using extra heavy wall tubing for maximum strength. They are rated at 24,000 pounds gross trailer weight. Short Bed Extended Couplers come with all necessary hardware and coupler release cabling. Installation takes about half an hour. If you have a square down tube, here are two more options. SB2XL 9″ offset, 4.5″ square, SB3XL 9″ offset 4″ square. For flat bed trucks with recessed ball Fits trailers with 4″ ID round tube Our Part measures 4″ outside to outside and is manufactured with USA steel. Make sure it fits your trailer downtube. Some manufacturers use Import tubes, and many are Not sized consistently or are out of round or square. PopUp assumes No responsibility for returns when incorrect measurements are taken. Please see return policy. |
