Tekonsha 119177 HD Circuit Protector Trailer Wiring w/ Back up & Over Load Protection Vehicle Wiring 5 - Way Flat (2 wire, 3 wire)

Instructions: Installation Details.pdf

Installation Notes:

Features

The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
Draws power directly from the vehicle battery
Will work with either LED/Incandescent bulbs (vehicle & trailer)
Short circuit protection safeguards itself and the tow vehicle against harmful electrical shorts
Designed not to send feedback thru the vehicle circuits
The trailer brakes will override the hazard lamps when the brake is activated
The taillight circuit works with vehicles that use a pulse width modulation (PWM)
Circuit automatically resets once the module cools
Will work with most vehicles that have a multiplex system for lighting
Will not work with vehicles with low-side switch
Integrated 5- wayflat electrical wiring connector. Fifth circuit added for surge brake lockout or backup light circuit on trailers
Can be used on a 2 wire or 3 wire system
All solid-state components in potted encapsulation
Includes integrated protective cover

Specs

Turn and Brake Circuits: 4.2 Amps
Tail Light Circuits: 7.5 Amps
Output: 5-Way Flat
Converter Type: Circuit Protected Power

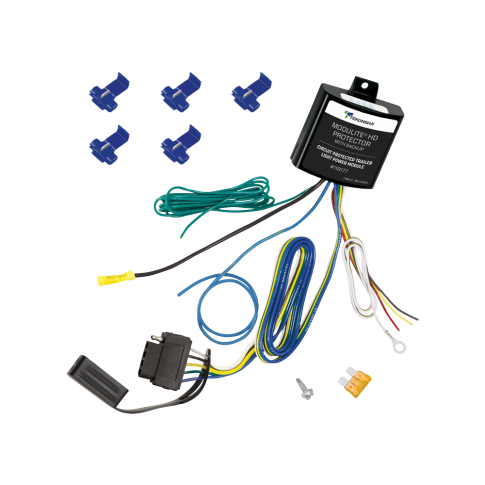

The Tekonsha Circuit Protected Tail Light Converter is a universal trailer wiring converter that adapts import and domestic vehicles with separate turn and stop lights (3-Wire System) to standard trailer tail light wiring (2-Wire System). The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit. Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off. Will work with either LED/Incandescent bulbs (vehicle & trailer). Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps. Designed not to send feedback thru the vehicle circuits. The trailer brakes will override the hazard lamps when the brake is activated.
