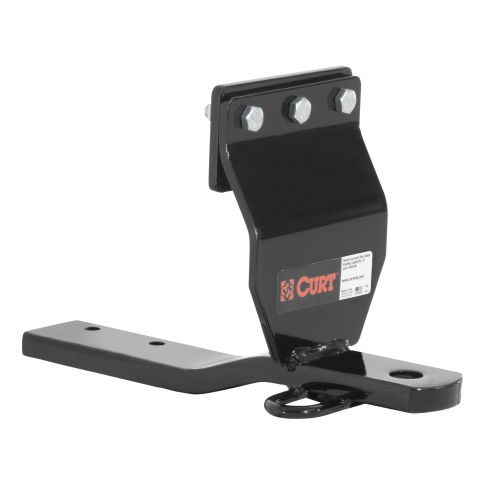

1987 Honda Civic Trailer Hitch Receiver Curt 11574 1,000 Lbs Ball Moun

• Honda, Civic, 1984 - 1987, Wagon, Except 4WD

Instructions: Installation Details.pdf

Installation Notes:

• Trunk access required for hitch installation.
• Hitch cross tube is visible.
• Drilling Required.
• Fixed Draw Bar.
• Installation time: 30 min

Features

Custom fit is designed specifically for your vehicle
Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories
Tested for safety in accordance with SAE J684
Protected by a durable high-gloss black powder coat finish
Bolt-on installation - no welding required
Complete hardware kit and installation instructions included
Trailer hitch weight ratings are limited to vehicle manufacturers stated capacities and conditions
Backed by a limited lifetime warranty
Hitch Pin Included
Drawbar and Hitch lock pin sold separately
Made in the USA
Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.)
All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt.

Specs

Receiver opening: 1-1/4"
Hitch design: Square tube
Rating: Class 1
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 1,000lbs
Maximum tongue weight: 100lbs
Maximum weight distribution weight: N/A
Maximum weight distribution tongue weight: N/A
Limited lifetime warranty

CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality American steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,000 lbs. of gross trailer weight and 100 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).

This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Daihatsu Rocky SUV (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. Like all CURT receiver hitches, this class 1 hitch is made right here in the USA and is backed by a one-year finish warranty and a limited lifetime warranty.
