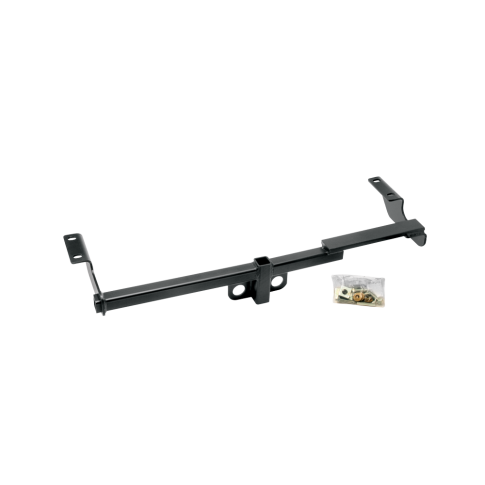

2004 Scion xB Trailer Hitch Receiver Draw-Tite 28501 2,000 Lbs Fits 1-1/4" inch

• Scion, xB, 2004 - 2006

Instructions: Installation Details.pdf

Installation Notes:

• Hitch cross tube is concealed.
• No drilling required.
• Exhaust must be removed temporarily.
• Installation time: 30 min

Features

Custom fit is designed specifically for your vehicle
Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories
Tested for safety in accordance with SAE J684
Protected by a durable high-gloss black powder coat finish
Bolt-on installation - no welding required
Complete hardware kit and installation instructions included
Trailer hitch weight ratings are limited to vehicle manufacturer’s stated capacities and conditions
Backed by a limited lifetime warranty
Drawbar and pin and clip sold separately
Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.)

Specs

Receiver opening: 1-1/4""
Hitch design: Square tube
Rating: Class 1
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 2,000lbs
Maximum tongue weight: 200lbs
Maximum weight distribution weight: N/A
Maximum weight distribution tongue weight: N/A
Limited lifetime warranty

Draw-Tite class 1 trailer hitches are custom built according to manufacturer and model year to ensure perfect fit and top towing performance. Solid all welded construction for maximum strength and safety with black powder coat finish over e- coat. This class 1 hitch has a capacity to tow up to 2,000 lbs. of gross trailer weight and 200 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more.

It can also accept a hitch-mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space. Class 1 hitches feature a 1 1/4" x 1 1/4" receiver tube opening and are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. All Draw-Tite Hitches are backed by a nationwide limited lifetime warranty.
