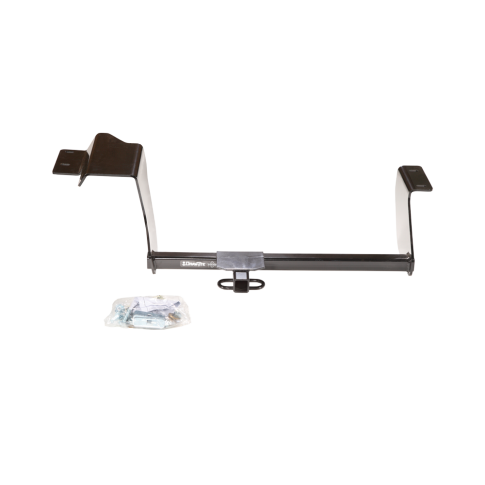

2012 - 2017 Chevrolet Sonic HatchbackTrailer Hitch Receiver Draw-Tite 24878 2,000 Lbs 1-1/4" inch

Name: 2012 - 2017 Chevrolet Sonic HatchbackTrailer Hitch Receiver Draw-Tite 24878 2,000 Lbs 1-1/4" inch
Brand: Draw-Tite
SKU: 24878
Price: 239.15 USD
Availability: InStock

$25 Flat Fee Shipping on any Draw-Tite Orders Over $100.

Free In-Store Pickup on any Draw-Tite Product.

*Only Available within the Lower 48 US States for Select Brands Only.

Be the first to review this product

SKU

24878

2012 - 2019, Chevrolet, Sonic 5 Dr. Hatchback, Hitch Size: 1-1/4" inch. Tow/Tongue Capacity: 2,000/200 Lbs. Visible Cross Tube. No Drilling Required. No Trimming Required.

In the Area and Need Installation?

Please Select

Please Select
Install Hitch at 242 W 21 ST, Hialeah, FL 33010
Ship to My Home
Ship for In-Store Pickup

Qty

$239.15

Notify me when the price drops

More Information

More Information
SKU	24878
Availability	Shipping Required
Hitch Size	1-1/4" inch
Tow Capacity	2,000 Lbs
Tongue Capacity	200 Lbs
Location of Hitch	Rear Hitch
Hitch Class	Class 1
Hitch Cross Tube Visibility	Visible Cross Tube
Drilling Required	Yes
Trimming Required	Yes
Install Time	30 min
Brand	Draw-Tite
Material	Steel
Finish	Black Powder Coat Over E-Coat
Short Description	2012 - 2019, Chevrolet, Sonic 5 Dr. Hatchback, Hitch Size: 1-1/4" inch. Tow/Tongue Capacity: 2,000/200 Lbs. Visible Cross Tube. No Drilling Required. No Trimming Required.
Installation	Instructions: Installation Details.pdf Installation Notes: Hitch cross tube is visible. No drilling required. Exhaust must be removed temporarily. Minor fascia need to be cut. Installation time: 30 min
Specifications	Features Custom fit is designed specifically for your vehicle Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories Tested for safety in accordance with SAE J684 Protected by a durable high-gloss black powder coat finish Bolt-on installation - no welding required Complete hardware kit and installation instructions included Trailer hitch weight ratings are limited to vehicle manufacturer’s stated capacities and conditions Backed by a limited lifetime warranty Drawbar and pin and clip sold separately Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.) Specs Receiver opening: 1-1/4" Hitch design: Square tube Rating: Class 1 Hitch height: Center hitch hole to edge of bumper: Maximum gross trailer weight: 2,000lbs Maximum tongue weight: 200lbs Maximum weight distribution weight: N/A Maximum weight distribution tongue weight: N/A Limited lifetime warranty
Overview	Draw-Tite class trailer hitches are custom built according to manufacturer. This class 1 hitch has a capacity to tow up to 2,000lbs and have 200lbs tongue capcity.Ãƒâ€šÃ‚Â This means it can handle a variety of small trailers such as single axle utility trailers, canoe and kayak trailers, dirt bike trailers and more. It can also accept a hitch mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space. All Draw Tite Hitches are backed by a nationwide limited lifetime warranty.
