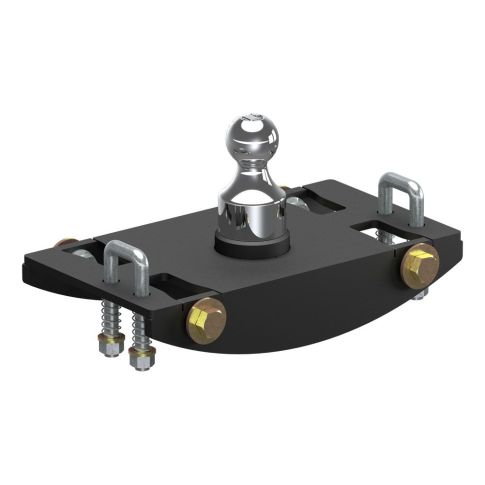

2019-2025 Ram 2500 & 3500 Gooseneck Hitch OEM-Style, Underbed, 35K Lbs, Curt 60633

• Ram, 2500, 2019 - 2025
• Ram, 3500, 2019 - 2025

Instructions: Installation Details.pdf

Features

Up to 30,000 lbs. GTW and 7,500 lbs. vertical load
Weight ratings are limited to vehicle manufacturer''s stated capacities
Quickly bolts on underneath the truck bed in 45 minutes or less
Requires no additional hardware or installation brackets
No drilling necessary except the truck bed holes
Installation also requires no welding, bed flange trimming or bed removal
Included patented 2 5/16" ball eliminates the need for a side handle
Heavy-duty 5/8" safety chain loops for a reliable connection
Tested for safety in accordance with SAE J2638
Protected by a highly durable, rust-resistant, liquid A-coat
Limited lifetime warranty
Not compatible with X5 adapters
Made in USA

Specs

Gross towing weight: 35,000lbs
Vertical load limit: 7,500lbs
Ball size: 2-5/16"
Weight: 50lbs
Limited lifetime warranty

CURT OEM-style gooseneck hitches are built to excel in two key things: ease of installation that comes from an ingenious design and safe, reliable towing even with heavy-duty gooseneck trailers.

The Ram-compatible gooseneck hitch boasts a one-person installation. It is built with fewer pieces than competitor hitches to keep installation simple, and the pieces are designed to be compact so they can be lifted and bolted into place without the help of a second person. We've also eliminated a number of steps from the process to speed up installation time and reduce the number of modifications needed on the vehicle. The hitch does not require the exhaust or spare tire to be lowered. It requires no welding, temporary truck bed removal or even bed flange trimming. Best of all, pre-existing factory holes are used to mount the hitch to the truck's frame, meaning the only drilling necessary is for the gooseneck ball hole and safety chains in the truck bed.

Once installed, the OEM-style gooseneck hitch for Ram offers simple operation and highly secure towing. It is tested in accordance with SAE J2638 to safely tow up to 35,000 lbs. GTW. Instead of a side handle mounted under the wheel well, it uses a latch-locking trailer ball. This patented 2-5/16" ball easily drops into the gooseneck head from above the truck bed and is secured in place with a simple quarter-turn of the latch. This Ram gooseneck hitch also features heavy-duty 5/8" safety chain anchors for dependable security for your trailer, whether you're towing livestock, machinery or construction materials.

To ensure maximum quality, the CURT OEM-style gooseneck hitch for Ram comes with a tough A-coat finish to easily resist rust and scratches, and it is backed with a limited lifetime warranty.
