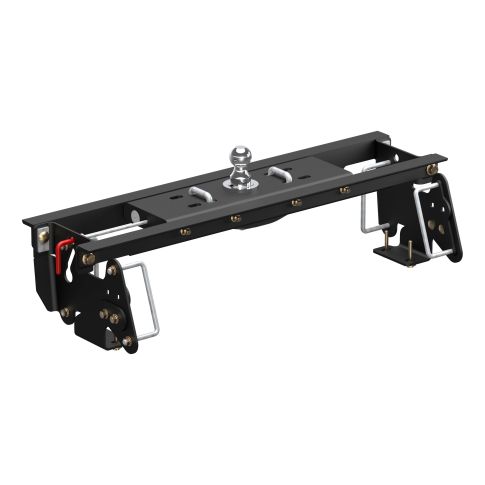

2003-2011 Dodge Ram 2500 3500 Gooseneck EZr Double Lock Underbed Trailer Hitch Kit, Curt, 60682,30K

• Dodge, Ram 2500 All, 2003 - 2010
• Dodge, Ram 3500 All, 2003 - 2010
• Ram, 2500 All, 2011 - 2013
• Ram, 3500 All, 2011 - 2012
• 60619 and 60660

Instructions: Installation Details.pdf

Features

Includes Double Lock EZr gooseneck hitch #60619 and installation brackets #60660
Vehicle-specific design optimizes strength and installation time
Heavy-duty under bed hitch lets you tow your gooseneck trailer
Double-lock system provides added security with 2 pins holding ball in place instead of 1
Chrome-plated hitch ball easily removes when you're not towing for complete access to your truck bed
Flip-and-store ball keeps truck bed free of obstruction
Chrome ring surrounds the hitch ball hole to provide a tight, low-profile look
Comfort-grip handle can be positioned on either side of truck bed
5/8" Inch Thick, spring-loaded safety-chain hookups are built in
Heavy-duty 3/8" Inch diameter handle for solid operation
Zinc plating provides superior corrosion resistance for locking mechanism
Rubber hole cover helps prevent corrosion in trailer ball hole
Carbide black powder coated steel is durable and corrosion resistant
Easy, one-person installation with included custom mounting kit
4" Inch Hole in bed is required
Patented center locator eliminates errors caused when drilling
No need to measure where ball hole will go in truck bed
Orange shavings appear when you've drilled far enough so that you know when to stop
No welding required
Truck bed does not need to be removed
Adapter plate (16220 - sold separately) allows for 5th-wheel towing
Offset hitch ball (60602 - sold separately) creates additional space between truck cab and trailer
Meets proposed SAE J2638 testing protocols
Made in USA

Specs

Gross towing weight: 30,000lbs
Vertical load limit: 7,500lbs
Ball size: 2-5/16"
Weight: 74lbs
Limited lifetime warranty
Center locator patent# D685,299 S

When the hardest working truck meets the heaviest duty trailer, the CURT Double Lock EZr™ gooseneck hitch provides the strength and ease of operation necessary to put the two together. The Double Lock EZr™ offers the easiest possible installation, requiring only one person for the job. It uses a patented Center Locator to eliminate tedious measuring for the truck bed hole. It uses carriage bolts wherever possible to allow for one wrench tightening. It requires no truck bed removal, no welding, no sheet metal cutting, no lowering of the exhaust on Ford, GM and most Dodge / Ram models and no relocation of cable hangers or ground wires on Dodge / Ram models. But the Double Lock EZr™ isn't just easy to install.

Whether you're hauling livestock out to the farm or pulling some heavy-duty machinery to the jobsite, the Double Lock EZr™ offers safe, reliable towing with a gross trailer weight rating of 30,000 lbs. and thorough SAE J2638 testing. It features a flip-and-store trailer ball that securely couples to any 2-5/16" gooseneck coupler, and the ball can be flipped over when not in use, eliminating any obstructions in the truck bed. It also operates with a 3/8" diameter handle with double-locking pins for maximum trailer ball security. To keep it well protected from rust and the elements, the Double Lock EZr™ is shielded in a highly durable carbide black powder coat finish. It also comes with a chrome trim ring, a rubber trim ring and a rubber hole cover for the truck bed hole. These components provide a finished look in the truck bed and keep rain, dirt and debris out of the trailer ball hole. This Double Lock EZr™ gooseneck hitch also comes with vehicle-specific installation brackets. These particular brackets are designed to fit certain years of the Ram or Dodge Ram 2500 or 3500 (for a complete listing of compatibility, see the vehicle application guide). The brackets come with all necessary mounting hardware for a complete installation, and they feature a rust-resistant liquid Bonderite® coating.
