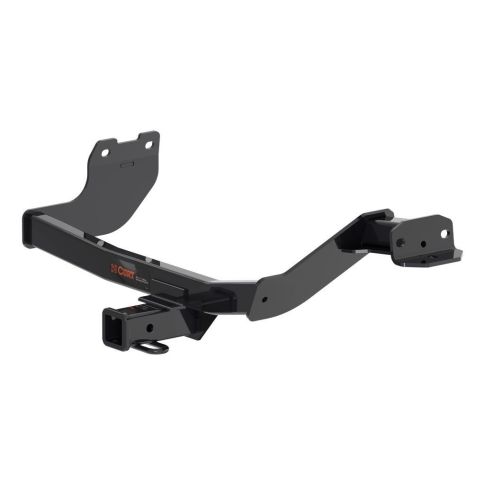

2022 - 2026 Hyundai Santa Cruz Trailer Hitch Receiver, Curt 13486, 5,000 Lbs, 2" inch Hitch

• 2022 - 2026, Hyundai, Santa Cruz, All.
• Hitch Size: 2" inch.
• Tow/Tongue Capacity: 5,000/750 Lbs.
• Concealed Cross Tube.
• No Drilling Required.
• No Trimming Required.

Instructions: Installation Details.pdf

Installation Notes:

• Hitch cross tube is visible.
• No drilling required.
• Exhaust must be removed temporarily.
• Trunk access required for hitch installation.
• Installation time: 45 min

Features

Custom fit is designed specifically for your vehicle
Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories
Tested for safety in accordance with SAE J684
Protected by a durable high-gloss black powder coat finish
Bolt-on installation - no welding required
Complete hardware kit and installation instructions included
Trailer hitch weight ratings are limited to vehicle manufacturers stated capacities and conditions
Backed by a limited lifetime warranty
Drawbar and Hitch pin sold separately
Made in the USA
Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.)
All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt

Specs

Receiver opening: 2"
Hitch design: Round tube
Rating: Class 3
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 5,000lbs
Maximum tongue weight: 750lbs
Maximum weight distribution weight: N/A
Maximum weight distribution tongue weight: N/A
Limited lifetime warranty

The CURT class 3 trailer hitch is the most common type of trailer hitch installed on full-size pickup trucks and SUVs. It is also found on full-size cars, crossover SUVs, minivans and mid-size trucks. That is because the class 3 packs the punch of a heavyweight hitch while still staying light on its feet. This CURT class 3 hitch offers a gross trailer weight capacity of 5,000 lbs. and a comparable tongue weight capacity of 750 lbs. It is designed to be a custom-fit trailer hitch for certain years of the Kia Sorento or Hyundai Santa Fe(to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a round tube frame and comes with all necessary hardware for a complete installation.

The 2" x 2" receiver tube opening of this class 3 hitch is able to accept a hitch-mounted accessory, such as a bike rack or cargo carrier, or a ball mount to tow most standard size trailers, including utility trailers, single-horse livestock trailers, boat trailers and large campers (NOTE: Never exceed the lowest weight capacity of any towing component). CURT class 3 trailer hitches are engineered to be strong and capable, having a quality steel frame and a solid finish. They are put through strenuous testing before being deemed ready for market and come with two coatings -- a liquid Bonderite coating and a powder coat in high-gloss black -- that cure together to form a strong resistance against rust, scratching, UV damage and other wear. Our hitches are our pride, and as such, we back them up with a limited lifetime warranty and a one-year finish warranty.
