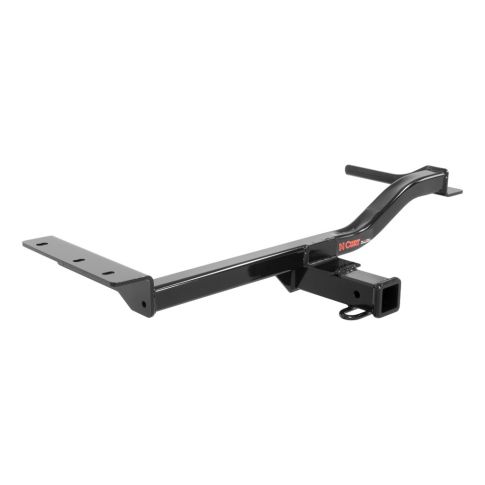

2016 - 2020 Lexus RX450h Trailer Hitch Receiver Curt 13282 4,000 Lbs 2" inch

Instructions: Installation Details.pdf

Installation Notes:

• Hitch cross tube is concealed.
• No drilling required.
• Minor trimming of fascia.
• Installation time: 30 min

Features

Custom fit is designed specifically for your vehicle
Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories
Tested for safety in accordance with SAE J684
Protected by a durable high-gloss black powder coat finish
Bolt-on installation - no welding required
Complete hardware kit and installation instructions included
Trailer hitch weight ratings are limited to vehicle manufacturers stated capacities and conditions
Backed by a limited lifetime warranty
Drawbar and Hitch pin sold separately
Made in the USA
Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.)
All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt.

Specs

Receiver opening: 2"
Hitch design: Square tube
Rating: Class 3
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 4,000lbs
Maximum tongue weight: 600lbs
Maximum weight distribution weight: 5,000lbs
Maximum weight distribution tongue weight: 600lbs
Limited lifetime warranty

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle most non-commercial trailers. Custom class 3 trailer hitches are the most common type of receiver hitch for the pickup truck and SUV. Because of their weight range, they are also found on the full-size car, crossover and minivan. However, each custom class 3 is made vehicle-specific. This particular model is designed to be a custom receiver hitch for certain years of the Lexus RX450H (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW.

It is also rated to be used with a weight distributing hitch, offering a WD capacity of 5,000 lbs. and a WDTW of 600 lbs. With a higher weight capacity, CURT class 3 trailer hitches are typically used to tow utility trailers, boat trailers, larger campers, snowmobile or ATV haulers, small livestock trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). Each class 3 has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, each one is made in the USA to be strong and dependable. They are designed using a hands-on approach and are constructed with high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid Bonderite and black powder coat for superior resistance to rust, chipping and UV damage. Plus, to give you the confidence to Bring It no matter what your next task is, all class 3 hitches are backed by a one-year finish warranty and a limited lifetime warranty.
