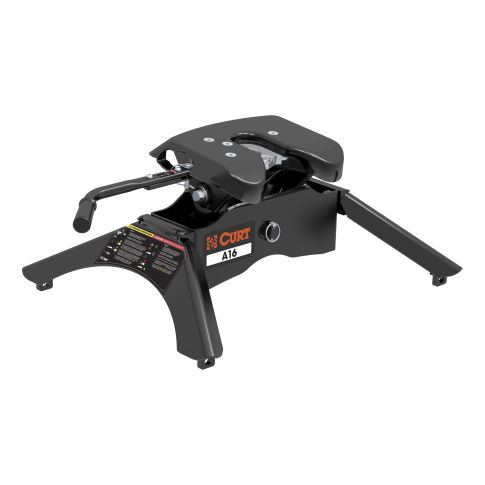

Curt 16120 A16 5th Wheel Trailer Hitch, Dual Interlocking Jaw, 16,000 Lbs

• Requires Base Rails and 5th Wheel Side Brackets.
• 16K Towing Capacity
• Cast yoke with poly torsion inserts to suppress shock loads and reduce noise
• Fully articulating torsion head for controlled coupling and stable towing
• Lockable handle self resets to the ready to couple position after uncoupling
• High strength, interlocking jaws fully wrap the kingpin to minimize noise
• Extra wide head opening for easier coupling
• Fast, one-pin head removal makes moving easy with smaller, lighter pieces

Instructions: Installation Details.pdf

Features:

• Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
• Fully articulating torsion head for controlled coupling and stable towing
• Lockable handle self-resets to the ready-to-couple position after uncoupling
• High-strength, interlocking jaws fully wrap the kingpin to minimize noise
• Extra wide head opening for easier coupling
• Fast, one-pin head removal makes moving easy with smaller, lighter pieces
• Three-position coupling indicator clearly shows coupling status
• Compatible with kingpin extension boxes, including common pivoting pin boxes
• Mounts to all industry-standard base rails
• Offers three height adjustment positions to adapt to each unique truck bed
• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

Specs:

• Part#: 16120
• Vertical Load Capacity: 4,000lbs
• Base Rails: Sold Separately
• Height: 13"-17"
• Tow capacity: 16,000lbs
• Tongue Capacity: 4,000lbs

The CURT A16 is designed to provide a surprisingly quiet ride while maintain superior towing power. It has a gross trailer weight capacity of 16,000 lbs. and can handle a vertical load up to 4,000 lbs. It comes with a three-position coupling indicator visible from your pickup truck cab, an extra wide head for easier coupling and high-strength interlocking die-cast jaws for a secure hold on your 5th wheel trailer.This 16K 5th wheel hitch excels in quiet 5th wheel towing. It uses a fully articulating torsion head, a cast yoke with poly-torsion inserts and interlocking jaws to create stability for your trailer and tow vehicle. These components also allow the A16 to suppress shock and vibrations and reduce any additional noise coming from your trailer. Like the other CURT A-Series hitches, the A16 is coated with a durable carbide powder coat finish. It is tested in accordance with SAE J2638 for safety and includes a limited lifetime warranty to make this the best hitch ever to be mounted in the back of your pickup. This A16 5th wheel hitch comes with a set of industry-standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets.Hialeah, Homestead, Keys, Miami 5th Wheel installs, Goosneck Hitch Installs, Trailer Hitch Installs
