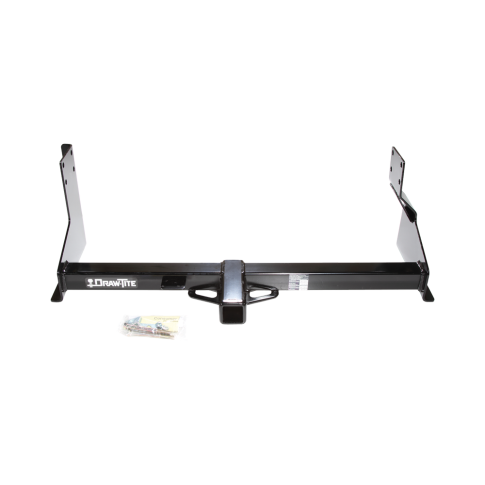

2016 Mercedes-Benz Sprinter 2500/3500 w/ Step Bumper, Trailer Hitch Receiver, Draw-Tite 75601, 5,000 Lbs, Fits 2" inch Hitch

•
• • 2016 - 2025 Mercedes-Benz Sprinter 2500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2016 - 2025 Mercedes-Benz Sprinter 3500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2016 - 2021 Freightliner Sprinter 2500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2016 - 2021 Freightliner Sprinter 3500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2010 - 2015 Mercedes-Benz Sprinter 2500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2010 - 2015 Mercedes-Benz Sprinter 3500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2007 - 2015 Freightliner Sprinter 2500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2007 - 2015 Freightliner Sprinter 3500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2007 - 2009 Dodge Sprinter 2500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
  • 2007 - 2009 Dodge Sprinter 3500 (144 inch Wheelbase, 170 inch Wheelbase), with factory step bumper
• • Fits With Step Bumper.

Instructions: Installation Details.pdf

Installation Notes:

• Hitch cross tube is visible.
• No drilling required.
• Installation time: 30 min

Features

Custom fit is designed specifically for your vehicle
Designed for towing, bike rack, cargo rack, wheelchair lift and other hitch accessories
Tested for safety in accordance with SAE J684
Protected by a durable high-gloss black powder coat finish
Bolt-on installation - no welding required
Complete hardware kit and installation instructions included
Trailer hitch weight ratings are limited to vehicle manufacturer’s stated capacities and conditions
Backed by a limited lifetime warranty
Drawbar and pin and clip sold separately
Customizations done to your car can effect installation (aftermarket bumper, muffler, etc.)

Specs

Receiver opening: 2"
Hitch design: Square tube
Rating: Class 3
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 5,000lbs
Maximum tongue weight: 500lbs
Maximum weight distribution weight: 7,500lbs
Maximum weight distribution tongue weight: 750lbs
Limited lifetime warranty

Draw-Tite class 3 trailer hitches are custom built. This means it can handle a variety of small trailers such as single axle utility trailers, canoe and kayak trailers, dirt bike trailers and more. It can also accept a hitch-mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space. The 2" x 2" receiver tube opening of this class 3 hitch is able to accept a hitch-mounted accessory, such as a bike rack or cargo carrier, or a ball mount to tow most standard size trailers, including utility trailers, single-horse livestock trailers, boat trailers and large campers.
