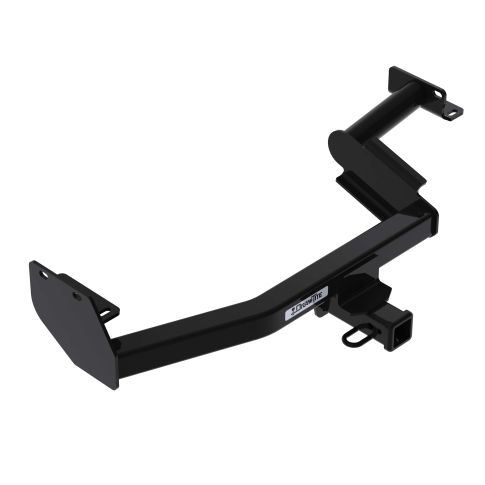

2020 - 2025 Hyundai Palisade Trailer Hitch Receiver, Draw-tite 76420, 5,000 Lbs, 2" inch Hitch

• 2020 - 2025, Hyundai, Palisade.
• 2020 - 2025, Kia, Telluride.
• Hitch Size: 2" inch.
• Tow/Tongue Capacity: 5,000 Lbs/500 Lbs.
• Concealed Cross Tube.
• No Drilling Required.
• Trimming Fascia is Required.

Instructions: Installation Details.pdf

Installation Notes:

• Hitch cross tube is concealed.
• No drilling required.
• Trimming on bumper fascia required on Telluride and Palisade.
• Installation time: 60 min

Features

Rated to 5,000 lbs. gross trailer weight and 750 lbs. tongue weight
Compatible with weight distribution hitch (6,000 lbs. WD / 750 lbs. WDTW)
Engineered with a vehicle-specific design for a custom fit
Concealed main body for OE look and seamless integration with the vehicle
Tested for safety in accordance with SAE J684
Precisely welded for superior strength and fit
Protected by a durable high-gloss black powder coat finish
Co-cured in a rust-resistant liquid Bonderite coating, inside and out
Equipped with an open-back receiver for easy cleaning
Limited lifetime warranty (one-year finish, one-year parts)
Made in USA (may include imported hardware)

Specs

Receiver opening: 2"
Hitch design: Square tube
Rating: Class 3
Hitch height:
Center hitch hole to edge of bumper:
Maximum gross trailer weight: 5,000lbs
Maximum tongue weight: 500lbs
Maximum weight distribution weight: 6,000lbs
Maximum weight distribution tongue weight: 750lbs
Limited lifetime warranty

Draw-Tite class 3 trailer hitches are custom built. This means it can handle a variety of small trailers such as single axle utility trailers, canoe and kayak trailers, dirt bike trailers and more. It can also accept a hitch-mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space. The 2" x 2" receiver tube opening of this class 3 hitch is able to accept a hitch-mounted accessory, such as a bike rack or cargo carrier, or a ball mount to tow most standard size trailers, including utility trailers, single-horse livestock trailers, boat trailers and large campers.
